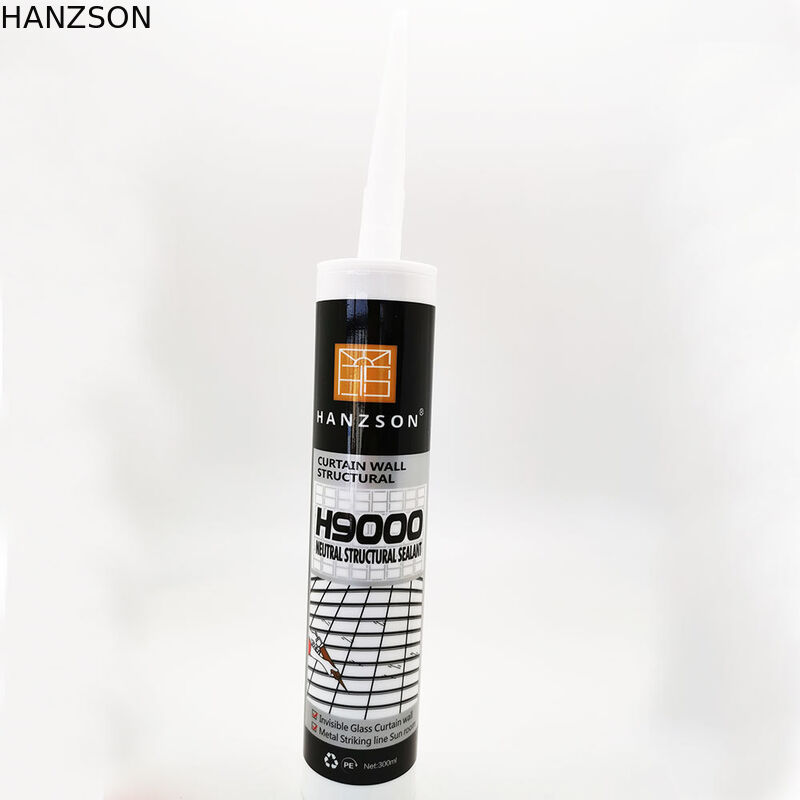

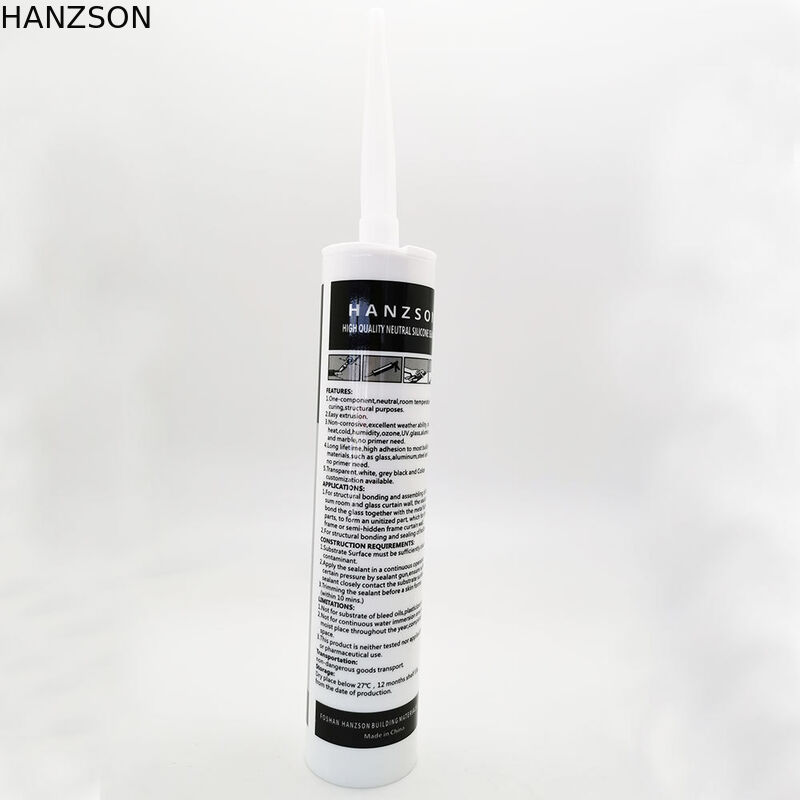

CURTAIN WALL STRUCTURAL SILICONE H9000 SEALANT
| Item |
Test series |
Standard |
Test result |
| 1 |
Appearance |
There should be no lumps, gel,
crusts and precipitates
that are not easy to disperse rapidly and uniformly |
Smooth paste without bubble or Particles |
| 2 |
Extrudability |
≤10 |
1.7 |
| 3 |
Cure time (h) |
≤3 |
0.9 |
| 4 |
SAG(mm),Vertical |
≤3 |
0 |
| |
SAG(mm) horizontal |
indeclinable |
indeclinable |
| 5 |
hardness,shore A |
20 to 60 |
43 |
| 6 |
Tensile bond strength(MPa) |
≥0.6 |
1.55 |
| Bond breaking area % |
≤5 |
1 |
| Elongation at maximum tensile strength % |
≥100 |
372 |
| tensile strength 10%,Mpa |
- |
0.24 |
| tensile strength 20%,Mpa |
- |
0.34 |
| tensile strength 40%,Mpa |
- |
0.47 |
FEATURES:
1. One-component,neutral,room temperature curing,structural purposes.
2. Easy extrusion.
3. Non-corrosive,excellent weather ability ,resistance to
heat,cold,humidity,ozone,UV.glass,aluminum,steel and marble,no primer need.
4. Long lifetime,high adhesion to most building materials,such as glass,aluminum,steel and
marble,no primer need.
5. Transparent,white, grey black and Color customization available.
APPLICATIONS:
1. For structural bonding and assembling of canopy,sum room and glass curtain wall, the sealant
can bond the glass together with the metal fabricated parts, to form an unitized part, which for
the hidden frame or semi-hidden frame curtain wall.
2. For structural bonding and sealing of hollow glass.
CONSTRUCTION REQUIREMENTS:
1. Substrate Surface must be sufficiently clean,dry ,no contaminant.
2. Apply the sealant in a continuous operation with certain pressure by sealant gun,ensure
sufficient sealant closely contact the substrate surface.
3. Trimming the sealant before a skin forms (within 10 mins.)
LIMITATIONS:
1. Not for substrate of bleed oils,plasticizers or solvents.
2. Not for continuous water immersion area,excessive moist place throughout the
year,completely confined space.
3. This product is neither tested nor applied for medical or pharmaceutical use.
PACKING,TRANSPORT AND STORE:

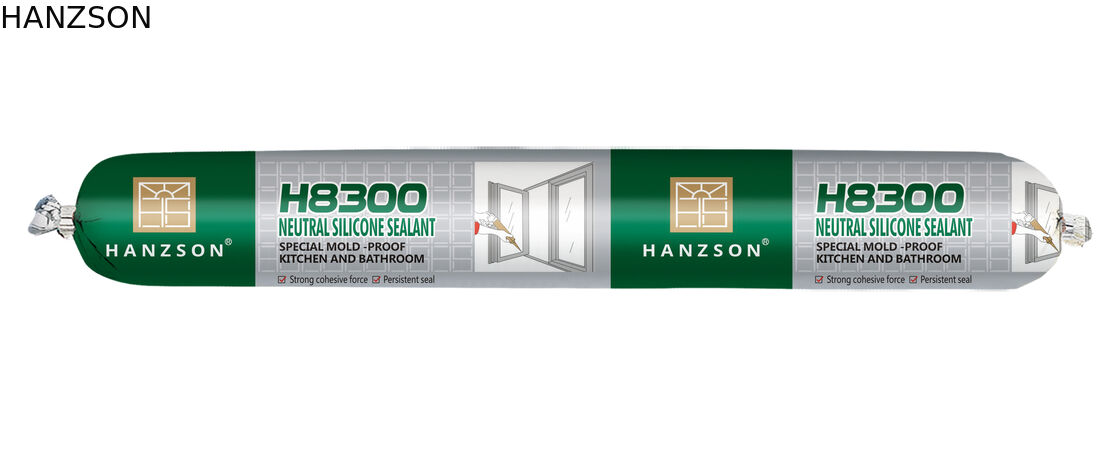

Package:Plastic cartridge 300ml,24pcs/carton;AL foil sausage 590ml,20pcs/carton;200L drums.
Transportation:non-dangerous goods transport.
Storage:Dry place below 27℃,12 months shelf life from the date of production.
Color:
